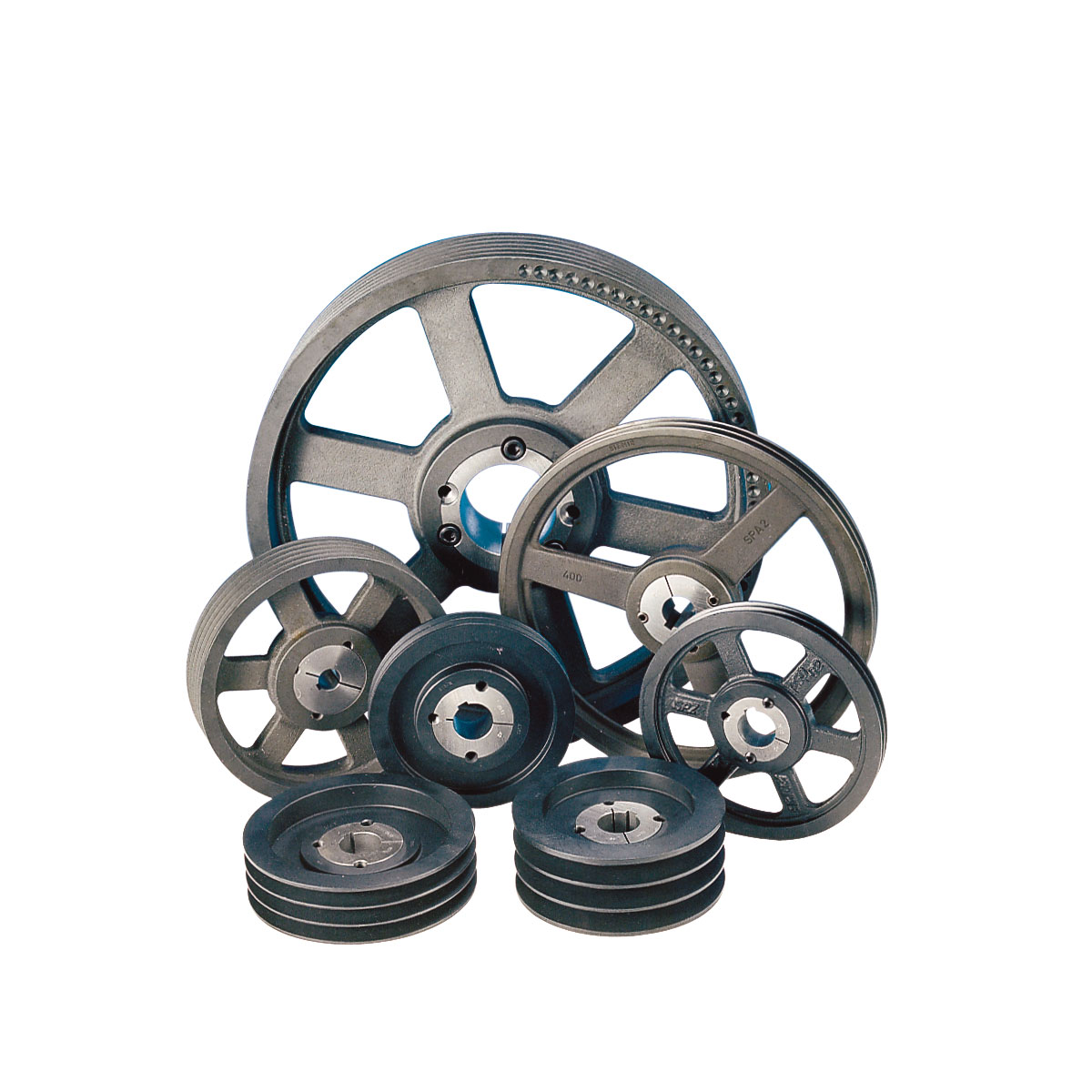

BTL 3V-5V-8V V-pulleys

Range of product: ANSI:(3V-1/3V-2/3V-3/3V-4/3V-5/3V-6/3V-8/ 3V-10/5V-2/5V-3/5V-4/5V-5/5V-6/5V-8/ 5V-10/8V-4/8V-5/8V-6/8V-8/8V-10) Inch size product (Apply to ANSI market) BTL 3V-5V-8V V-pulleys

Contact Us

Product Details

Parameters Introduction：

NSPT 3V-5V-8V series of pulleys with maximum 50" outside diameter and maximum 12 grooves can be

respectively suitable for bushes of BTL, QTL and STL series.

NSPT is capable of designing and producing non-standard pulleys based on customers' needs.

Product range：

Standards	Series Type	SizeRange
ANSI	3V-1	1-3V265-1108至1-3V1900-3020
	3V-2	2-3V265-1108至2-3V2500-3020
	3V-3	3-3V265-1108至3-3V3350-3020
	3V-4	4-3V265-1108至4-3V3350-3030
	3V-5	5-3V475-2517至5-3V3350-3030
	3V-6	6-3V475-2517至6-3V3350-3030
	3V-8	8-3V475-2517至8-3V3350-4040
	3V-10	10-3V475-2517至10-3V3350-4040
	5V-2	2-5V710-2517至2-5V2800-3535
	5V-3	3-5V710-2517至3-5V5000-4040
	5V-4	4-5V710-2517至4-5V5000-4040
	5V-5	5-5V710-3020至5-5V5000-4545
	5V-6	6-5V710-3020至5-5V5000-4545
	5V-8	8-5V710-3030至8-5V5000-4545
	5V-10	10-5V800-3030至10-5V5000-4545
	8V-4	4-8V1250-4040至4-8V5300-5050
	8V-5	5-8V1250-4040至5-8V5300-5050
	8V-6	6-8V1250-4040至6-8V5300-5050
	8V-8	8-8V1250-4545至8-8V5300-6050
	8V-10	10-8V1320-4545至10-8V5300-6050

ANSI Catalog：ANSI BTL 3V-5V-8V V-pulleys.pdf
